New for North America: the 6-axle (3+3) stretch single-drop trailer

The allrounder for heavy haul projects with payloads up to 120,000 lbs.

The perfect allrounder! Fully steerable and with flexible spacing between the axle tridems – 14‘1“ or 16‘1“.

The hydraulic lifting and lowering of the neck allows optimal ground clearance even on uneven terrain or when passing railway crossings and other obstacles.

While the 3-axle front bogie with caster steered axles follows the truck, the rear bogie counter-steers using state-of-the-art king-pin steering including remote control override. This combination ensures an ideal turning radius and helps to manage and enter tight corners and jobsites.

As it remains within a length of 53’ and a width of 100” when closed, it can be mobilized extremely fast and without any escorts or permits.

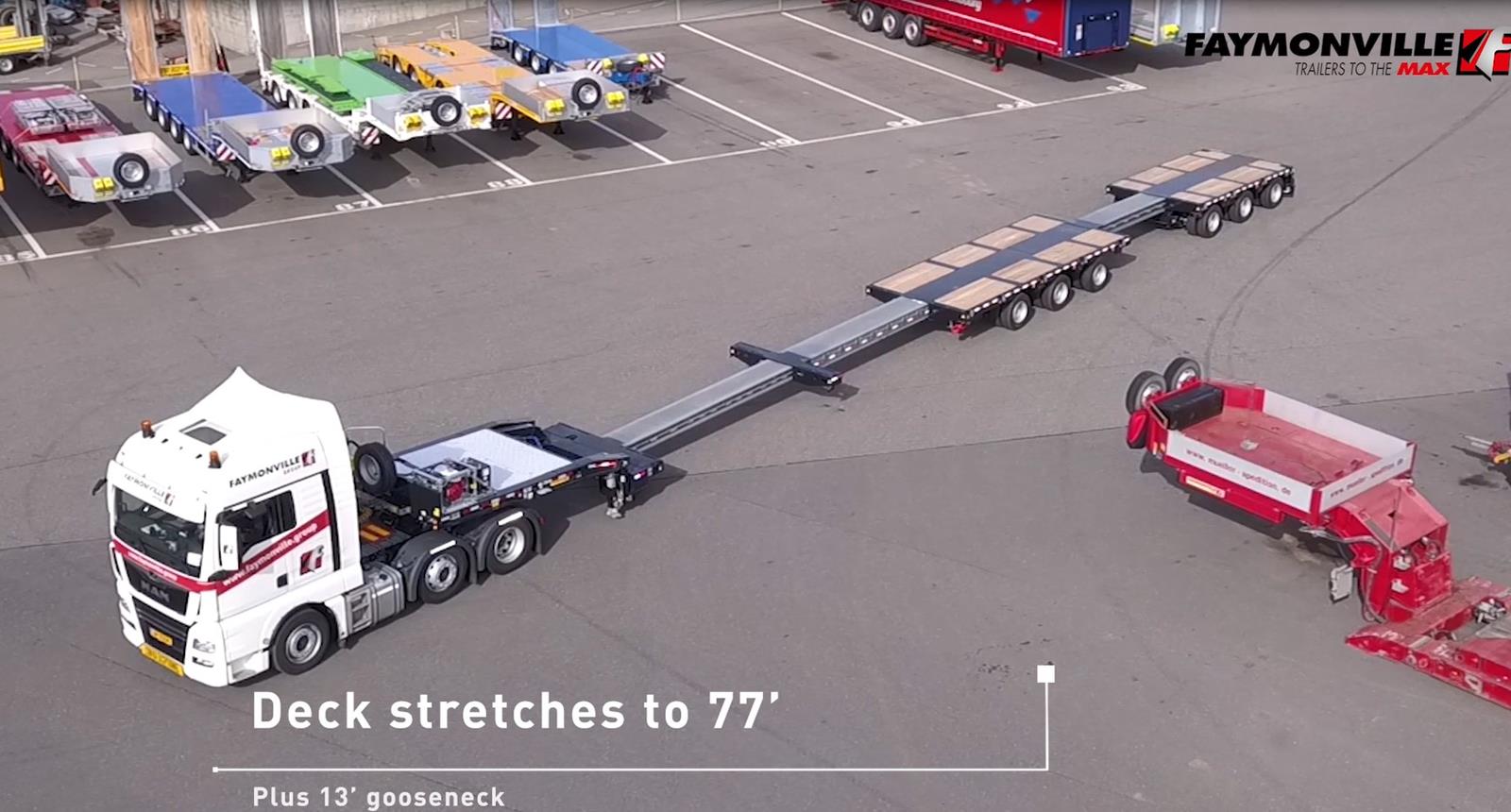

From its closed length, the trailer stretches to over 90’ incl. the gooseneck, thanks to a double stretch beam between gooseneck and front bogie and a single extension between the two tridems.

The platform over the axle bogies is closed and covered with timber. The trailer can be widened up to 10’ in these areas, using galvanized pull-out outriggers.

As for all Faymonville vehicles, the chassis is fully metalized (zinc-plated), which ensures the best corrosion protection available in the market.

Check out the product video to discover all the features
